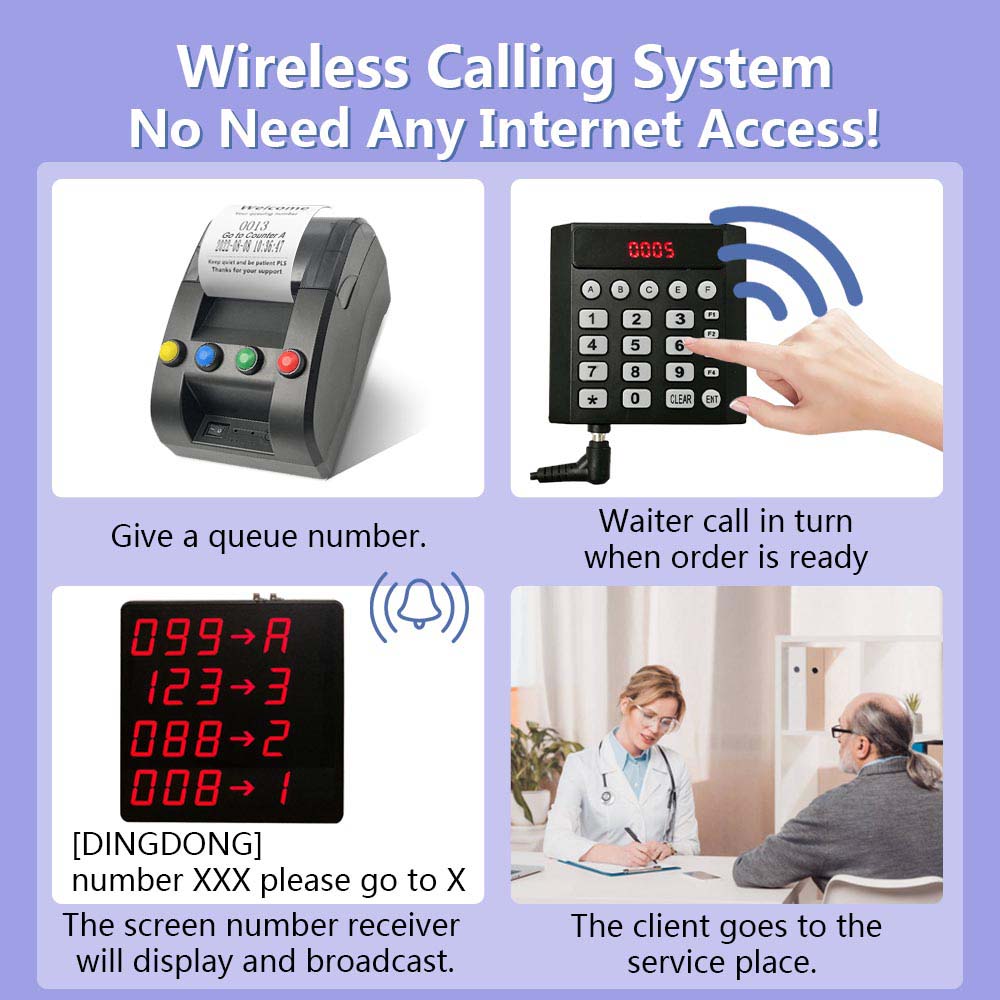

How Queue Management System works?

1. Customer go to the Service station and take a number ticket by Thermal Printer (K-TP).

2. Customer wait for their service.

3. When it is their turn, the counter worker will press the number+ENT to call.

4. The customer's number will show on the display screen with prompt sound, so that customer know which counter they should attend.

A complete kit includes:

(1) Display Monitor

To display ticket number .

(2) Keyboard

To call ticket number .

(3)Thermal Printer

To make the tickets for the customer

(4) Manual

Features:

1 Applications: Restaurant, Coffee Shop, Fast food Chain, Food Court, KTV, Pub, Service Centre, Clinic, Supermarket.Provides fair, organized, efficient customer service

2 It call number from 001-999.It can call back any number and recall any number.It with a next key,press Next+ENT ,then number will goes to next number.

3 Advantage: can avoid to stand in a long queue

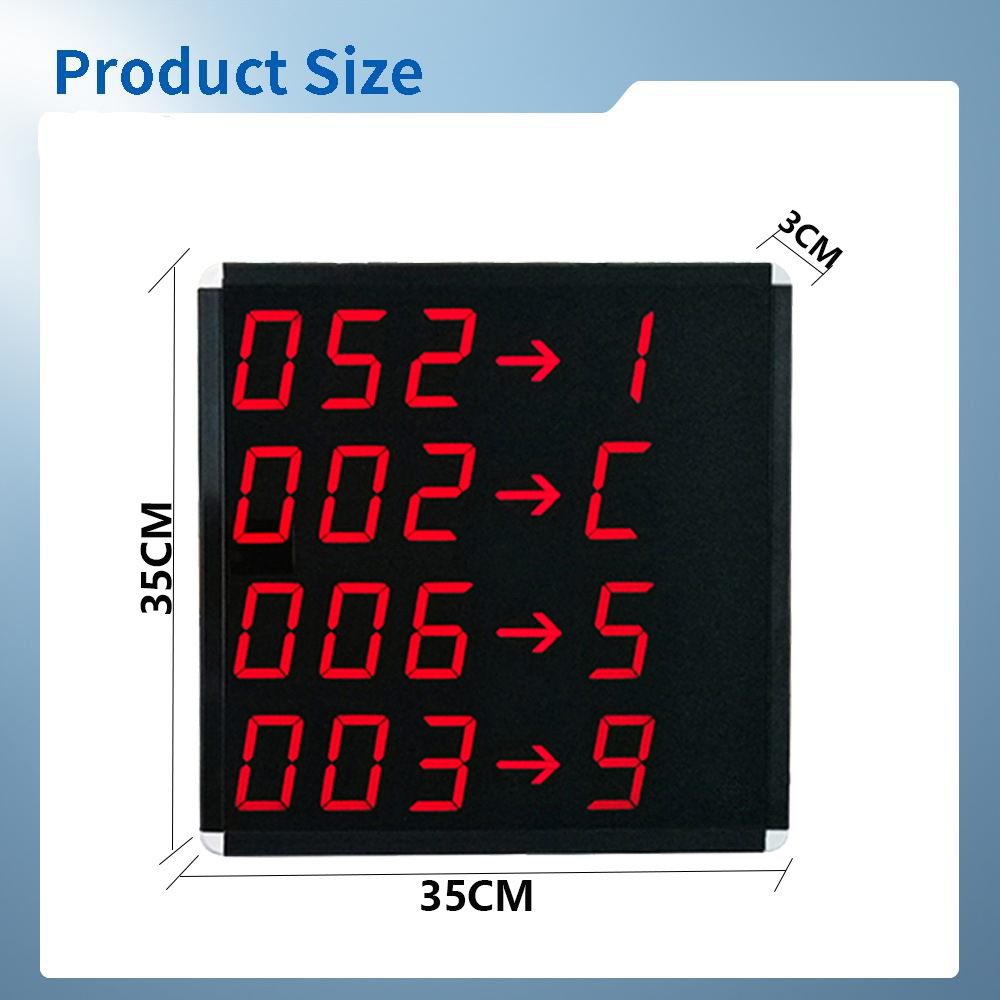

K-436-D display specification :

LED counter display labeled with Counter Number

1.Wireless signal receiver

2.Show 3-digit for display ticket number and 1 digit for counter number                   (1 line, 2 lines and 4 lines)

3.The newest calling ticket number will show on the top of the display receiver.

4.Can put on the Waiting Area for indicate customer.

5.Touch screen and English prompt voice:

   Please number 008 go to counter 8

6.Counter number can be alphabet, such as C

7.Can install on the wall and desk.

8.110V-240V Power supply

9.Working voltage: DC12V

10.Dimension: 35*35*3cm

11.With high strength aluminum alloy shell

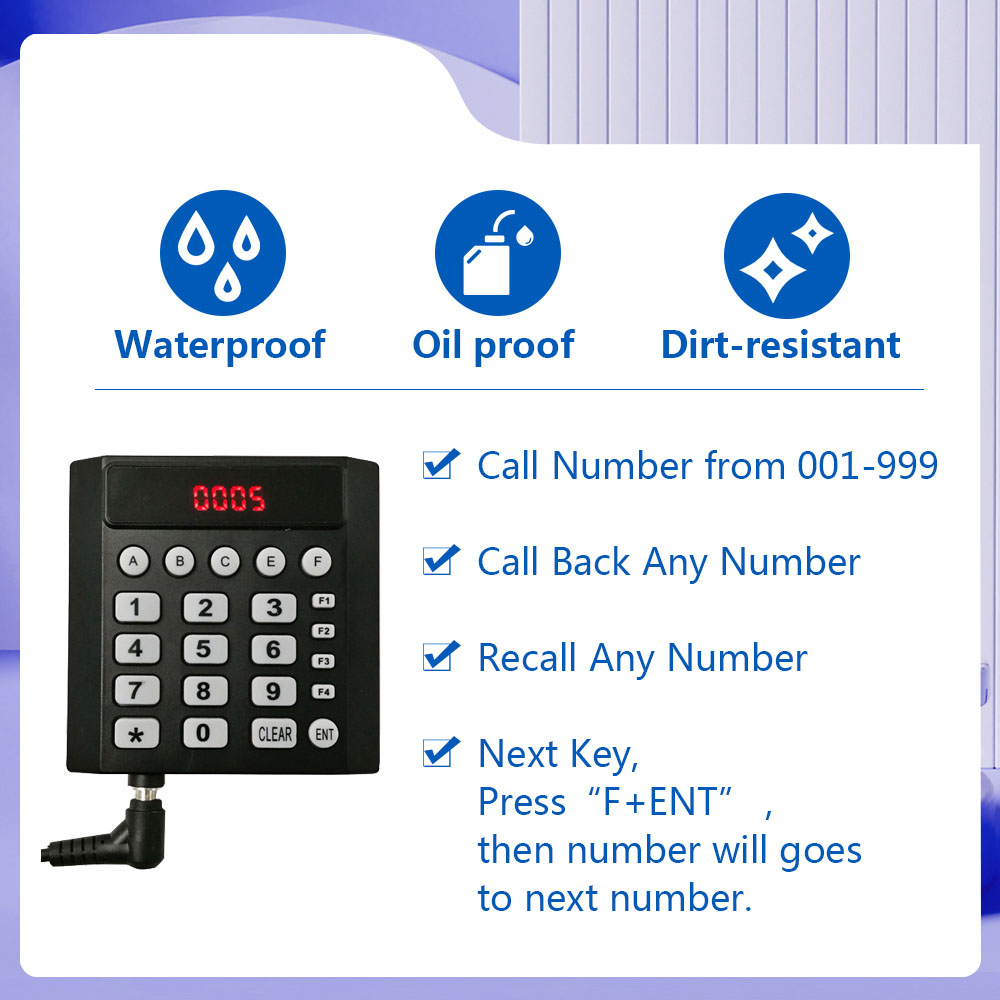

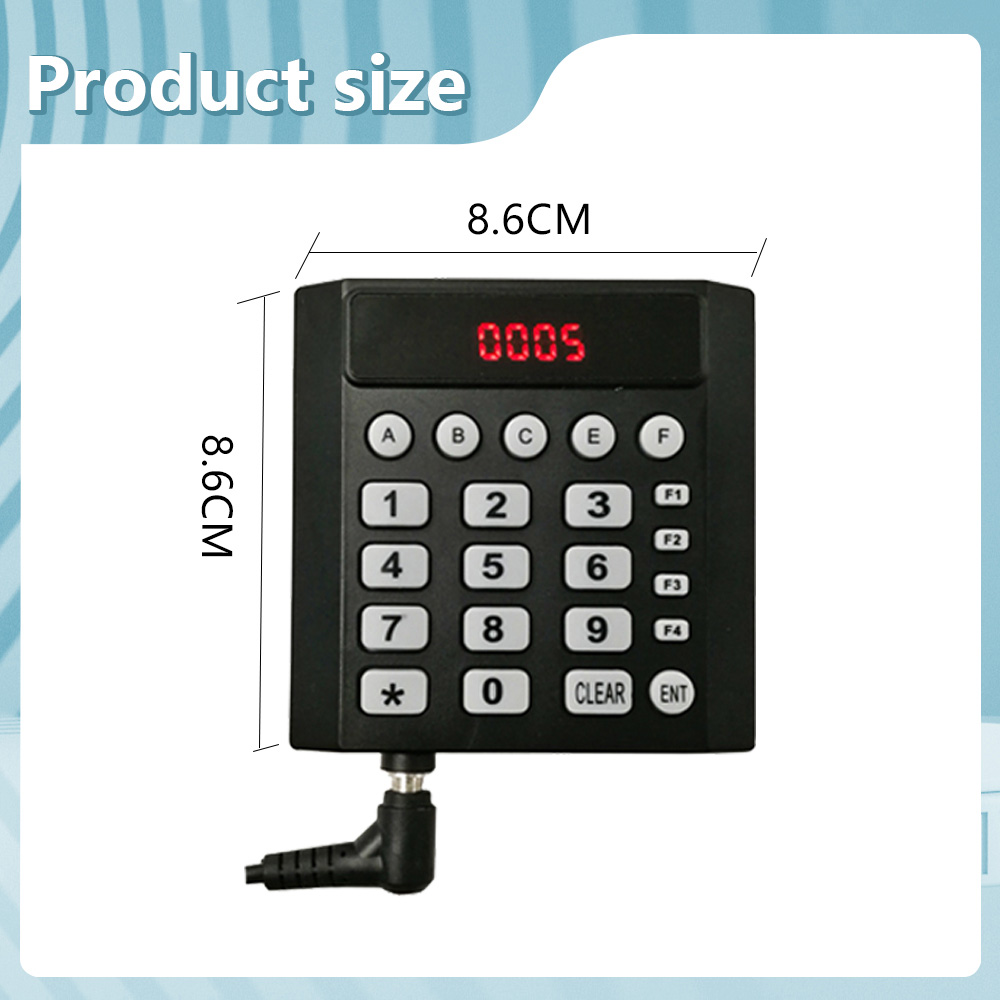

K-999B keyboard specification :

1. With high strength ABS material cover

2. Using digital code technology

3. It can call 999 persons

4. It have 4-digit number(first digit show zone and last three-digit number show current number)

5. With Clear, Next, Reset function

Technical parameters:

Signal Range: >200m in open area

Working voltage: DC7.5-12V

Working current: <20mA

Dimension:186*86*20mm

Color: black, white

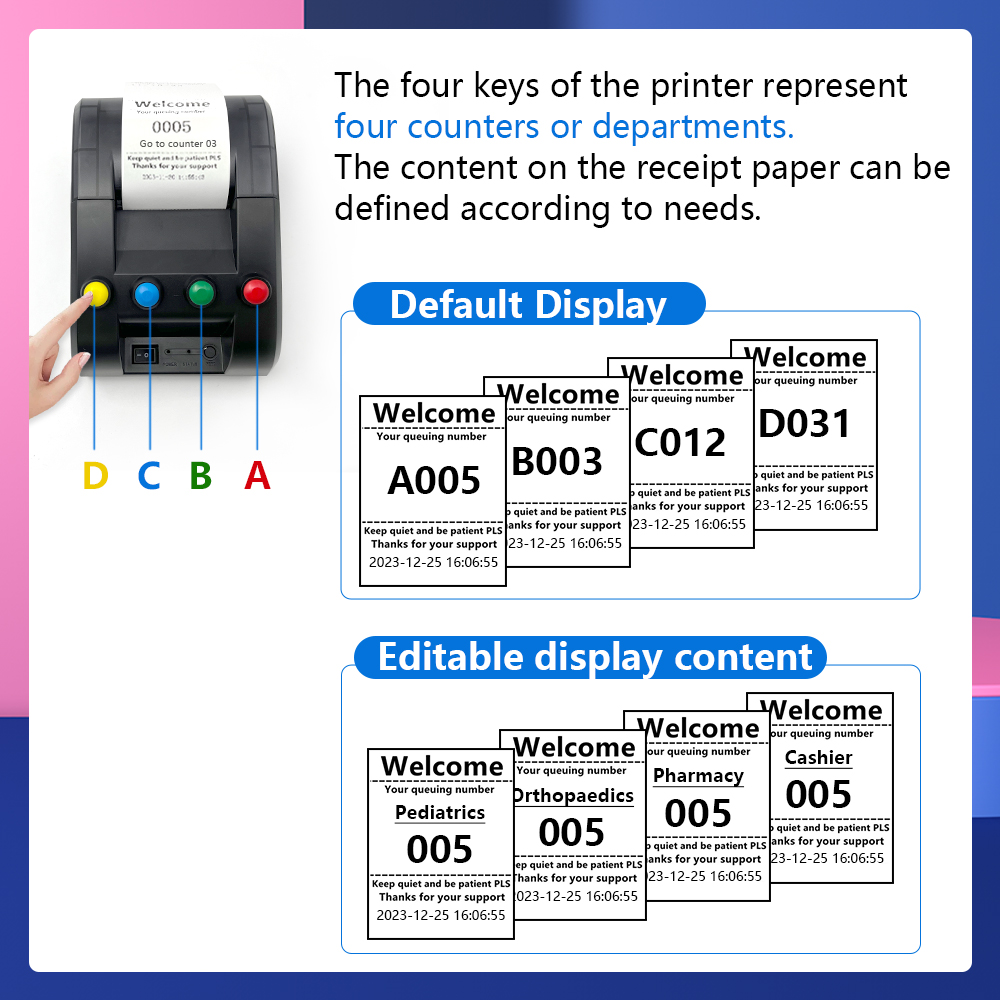

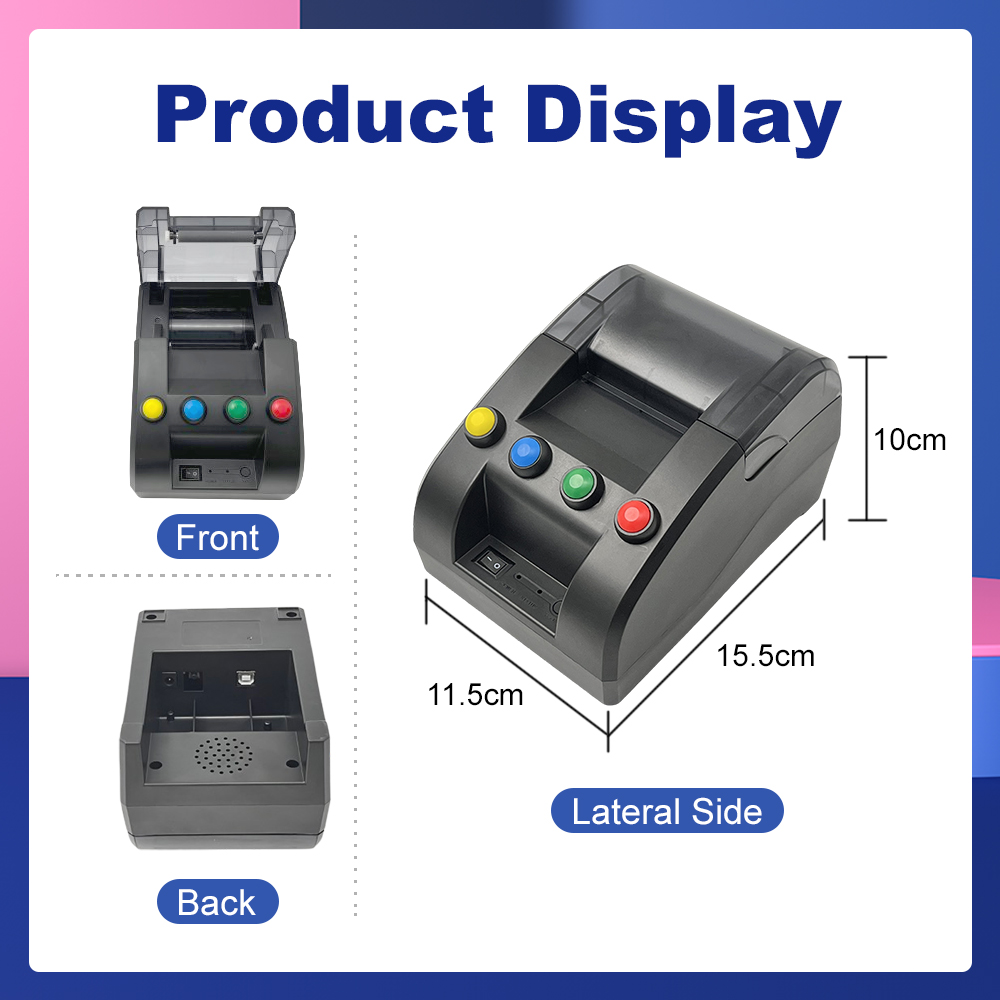

K-TP Thermal Printer (Don't need ink)

1.With high quality polycarbonate for whole shell

2.Can press the button to take a ticket for queue

3.Can print two same number at a time if you need

4.Can show waiting number if you need.

5.Color: black

6.Ticket width: 57mm

7.Working voltage: DC12V

8.Dimension: 20*12*11.5cm
