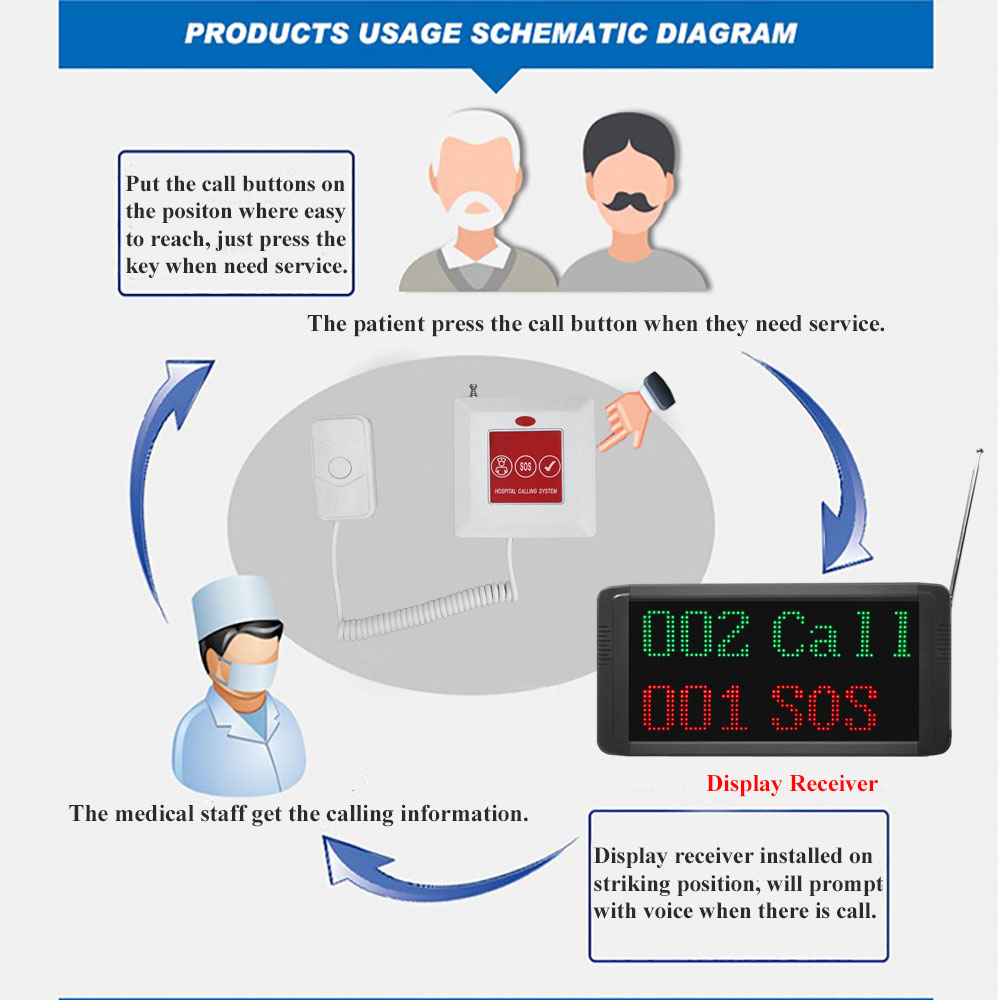

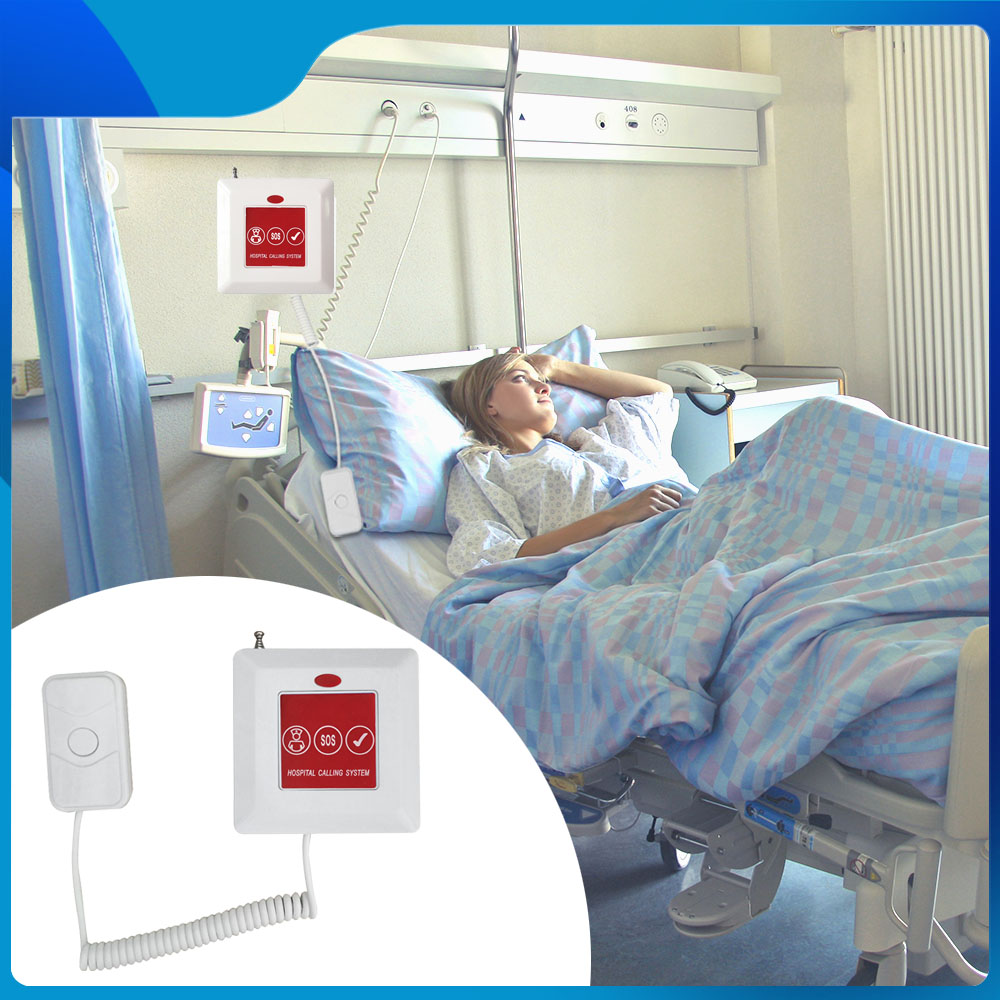

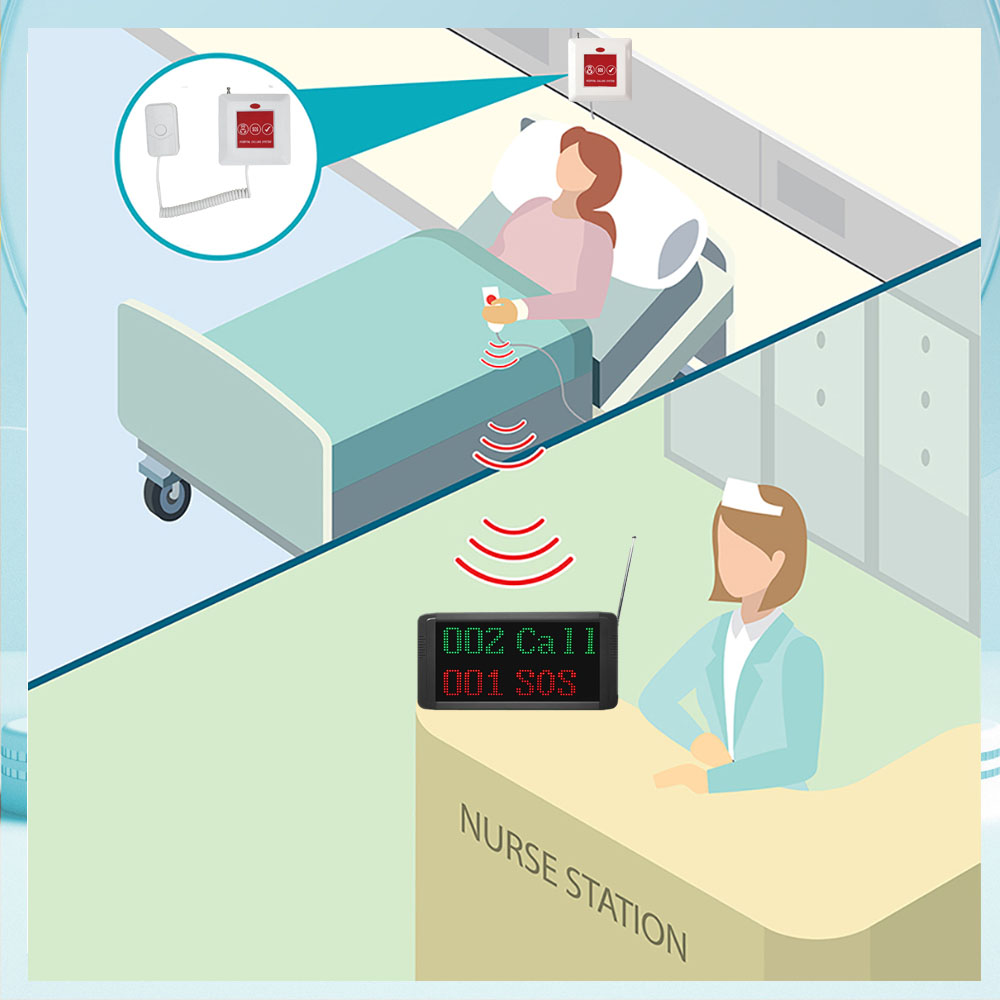

Wireless Nurse Call System is widely used in hospital;clinic ;older home ;Elderly Home and so on. It consist of button for patient use and signal receiver for nurse or doctor use. When the Patient needs any help, he or she just press the button , the bed number will be showed on the RECEIVER of watch or display screen with “dingdong” sound ovibration. And Room Light （optional ）will be red color. So the Nurse and doctor could offer help very timely.

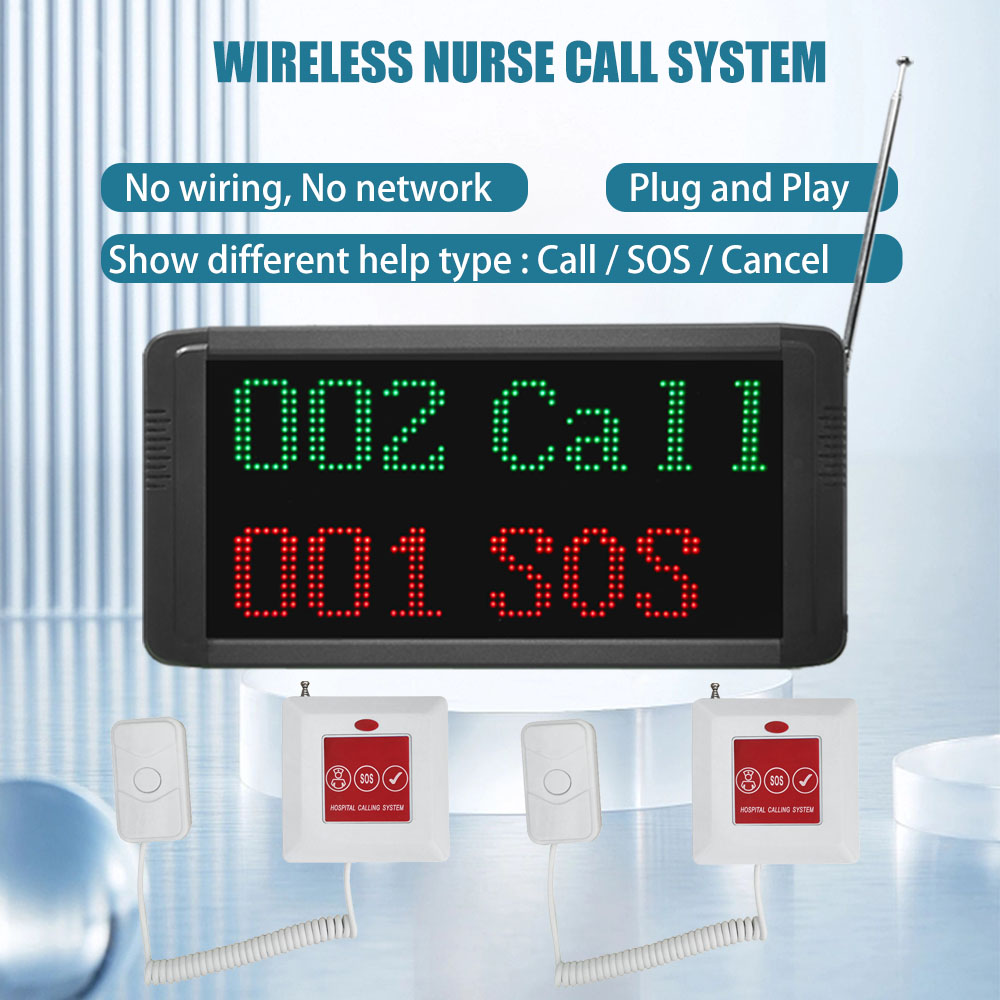

Specification of display receiver of K-800B:

1. With high strength ABS cover

2. Wall mounted ;

3. Dot matrix display, show two groups number one time

4. Shows current time when stand-by

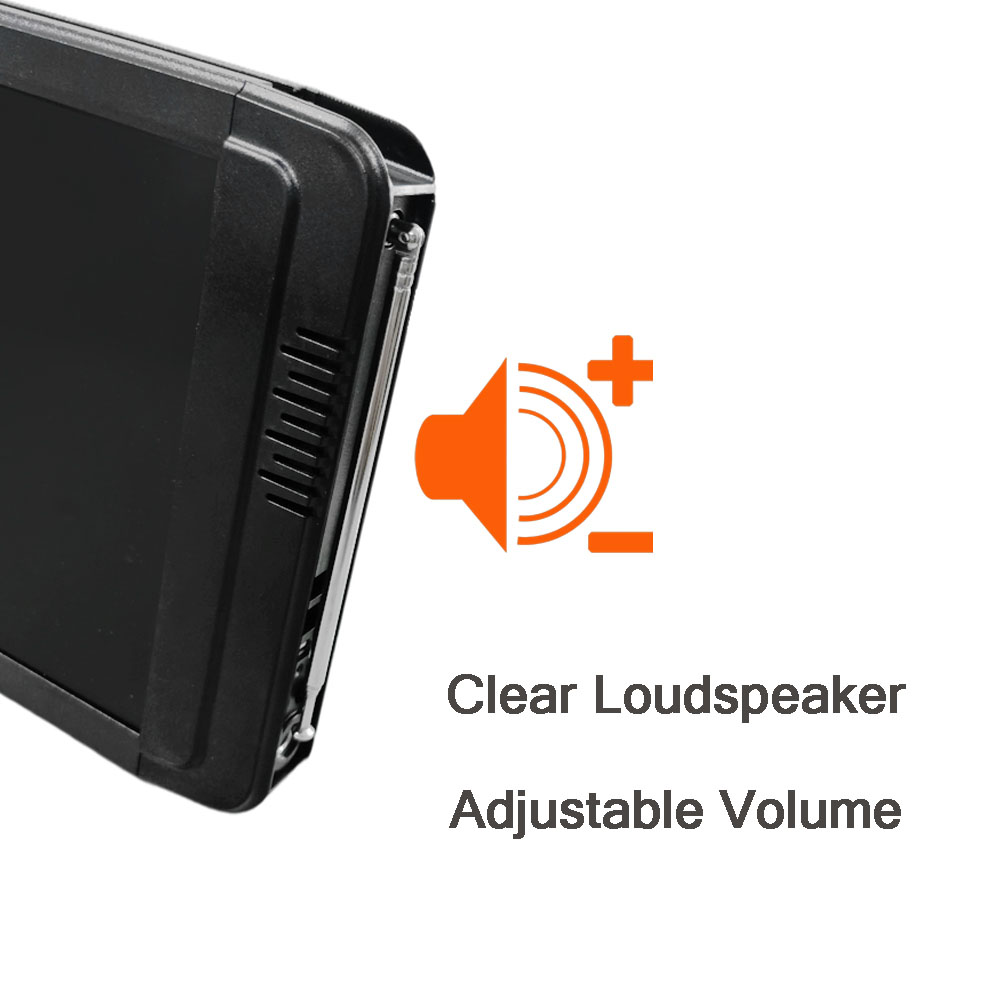

5. English or Spanish or Russian Voice prompt

6. Can read service type from screen directly

7. Can work with 999 pcs call buttons in max

8. 3-digits from 001-999 or lettters A-Z (eg A01, K7C, R01 etc.)

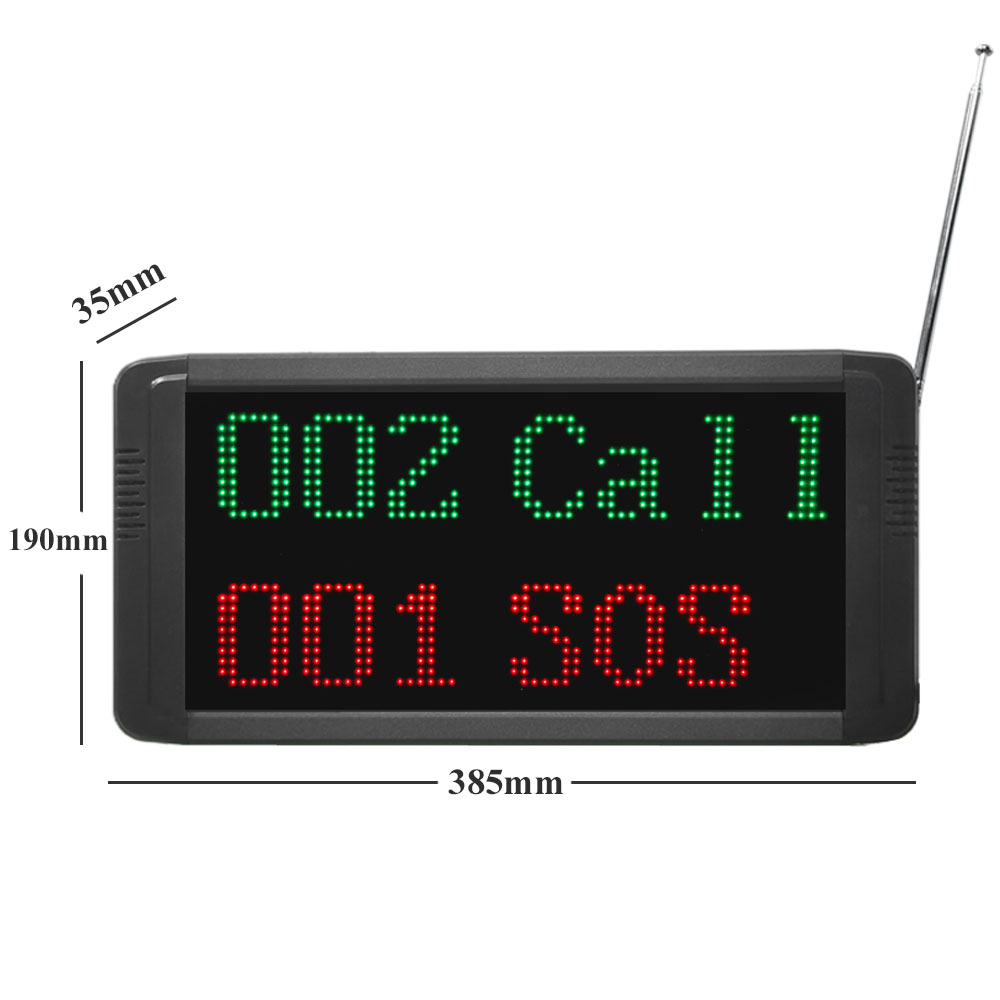

9. Dimension:380*185*36mm

10. Output: DC5V

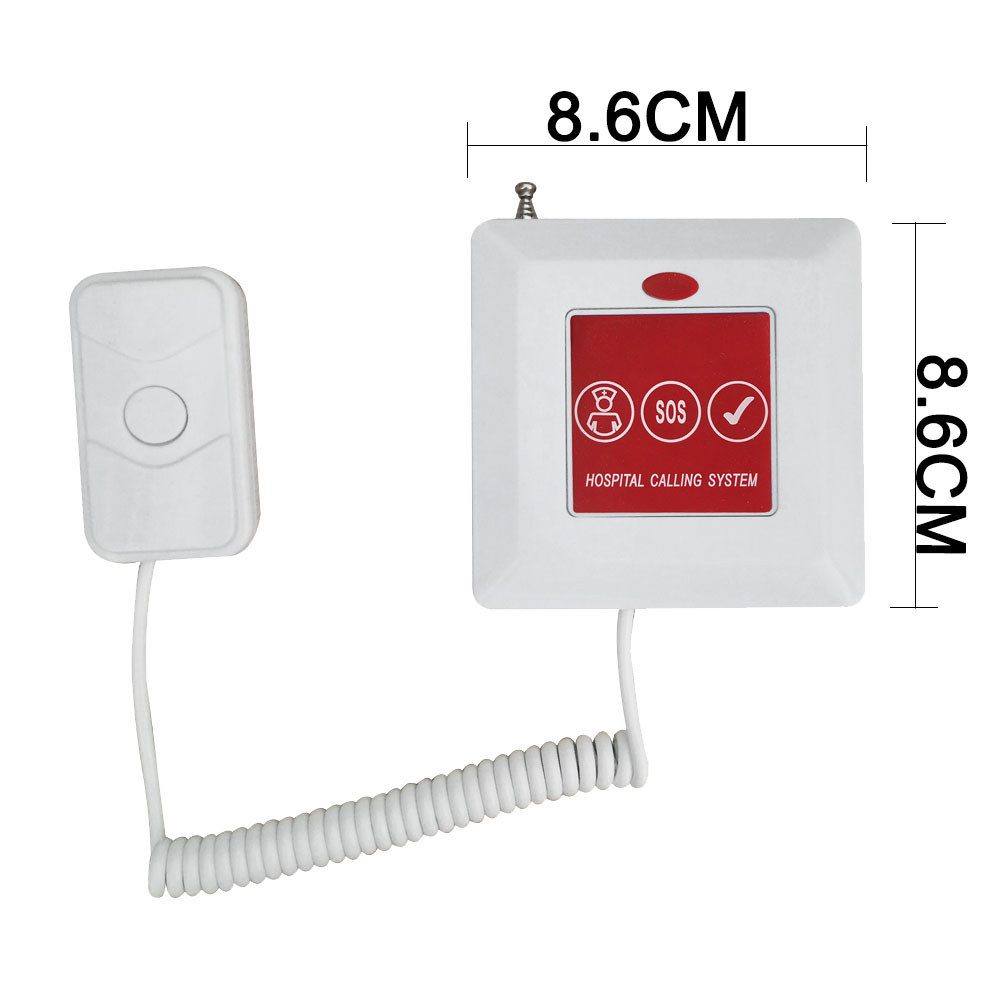

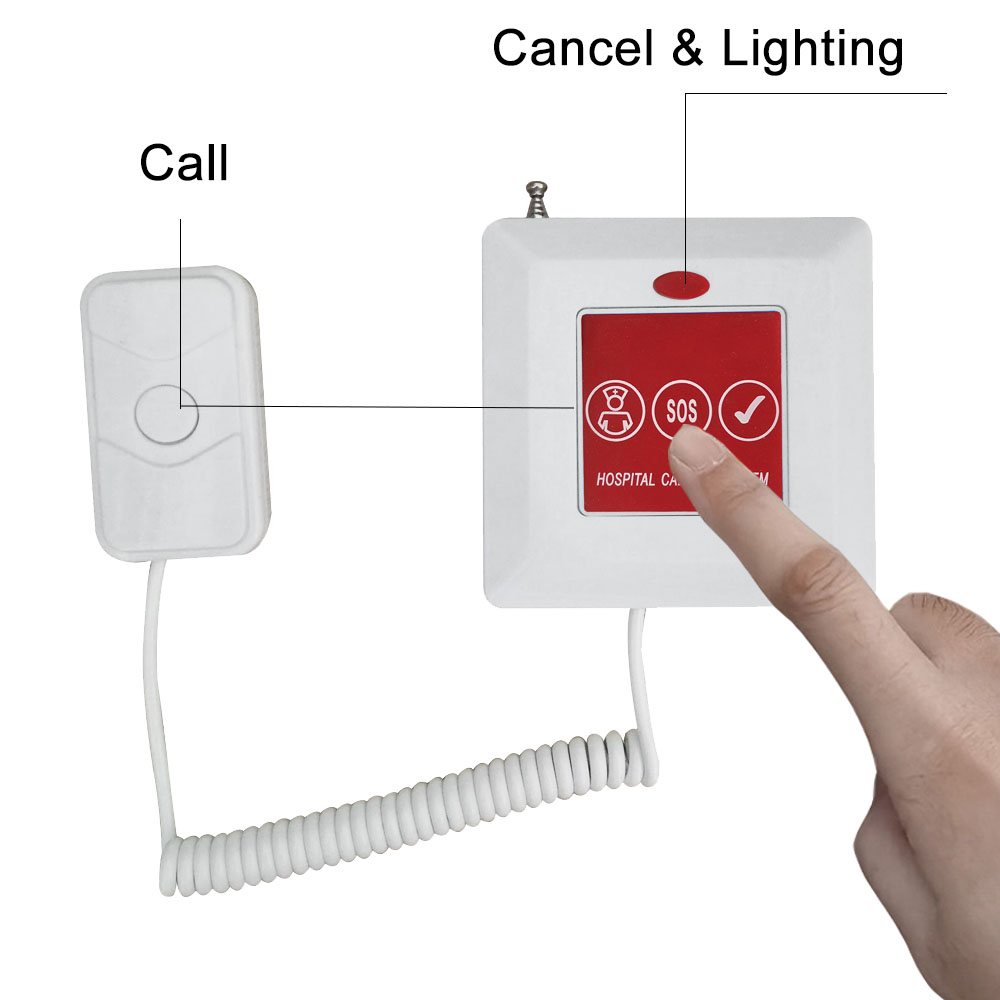

Specification of transmitter button of K-CH3-H

Waterproof

3-key: Nurse icon, SOS, Tick

(Nurse Icon means call the nurse, SOS means emergency, Tick means cancel the calling)

(Have a additional key on pull cord to call)

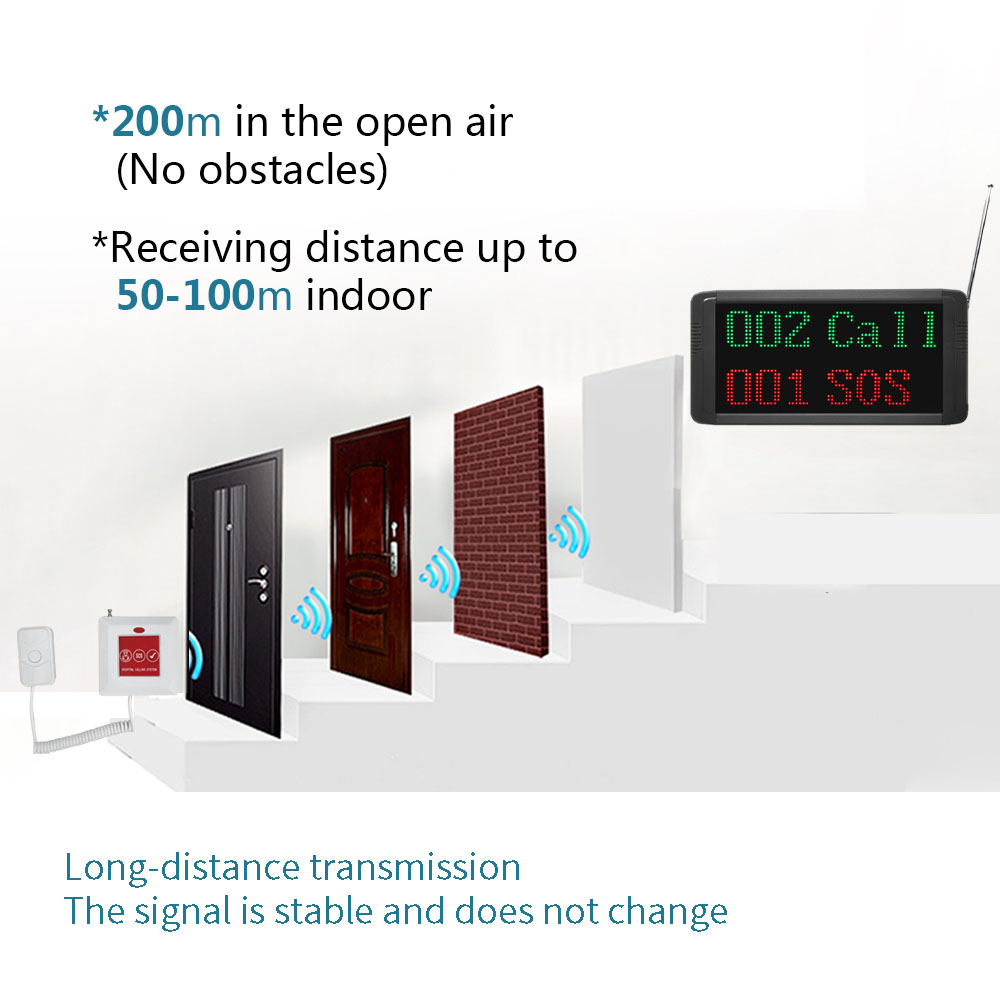

Signal Distance: 200m  in open area

Material: PC for plastic shell, siliga gel

Dimension: 8.6*8.6*2cm

Color: white-blue, white-red, white-grey

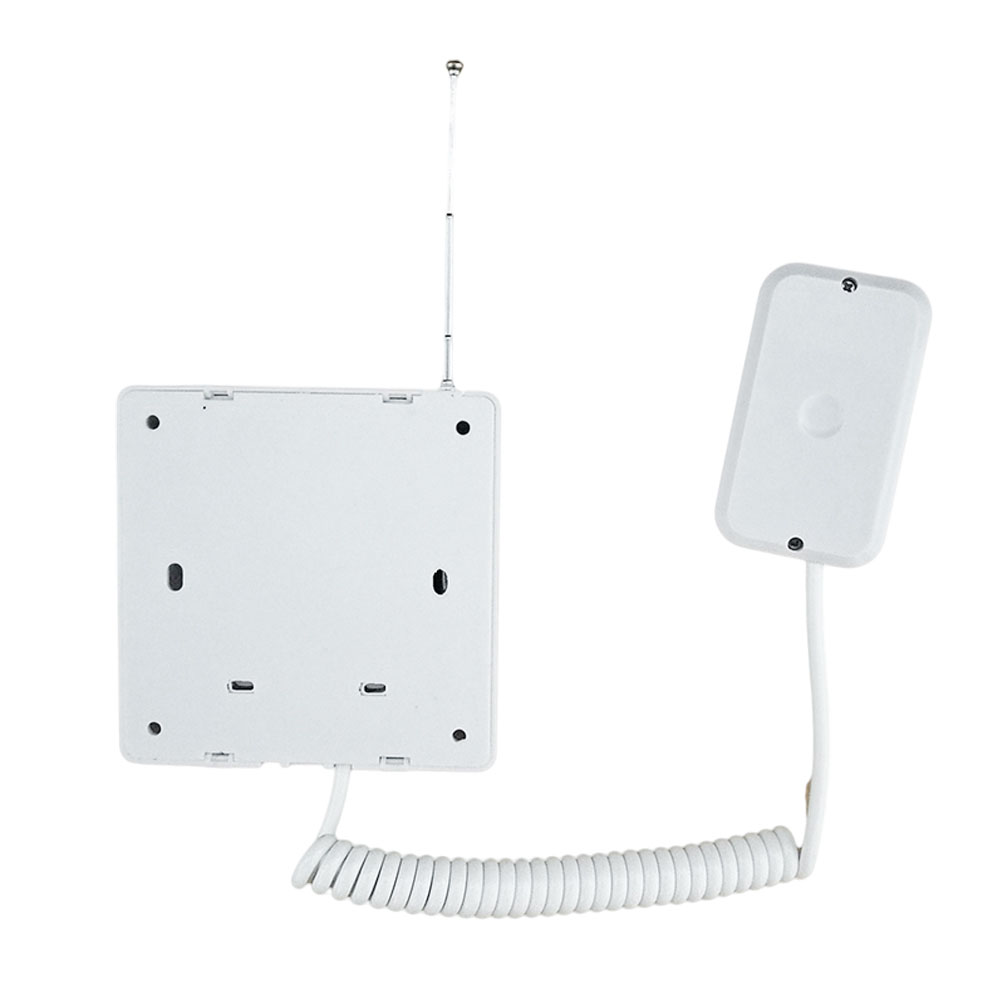

wall-mounted installation

With a antenna to enhance the signal
