Kitchen call waiter system K-999  K-300plus K-O1plus K-SP

One set consist of:

K-999  keypad for cooker use

K-300PLUS watches display for waiter use

K-O1plus calling buzzer for customer  use

K-SP black Acrylic Menu Holder help  setup the call button

Application:

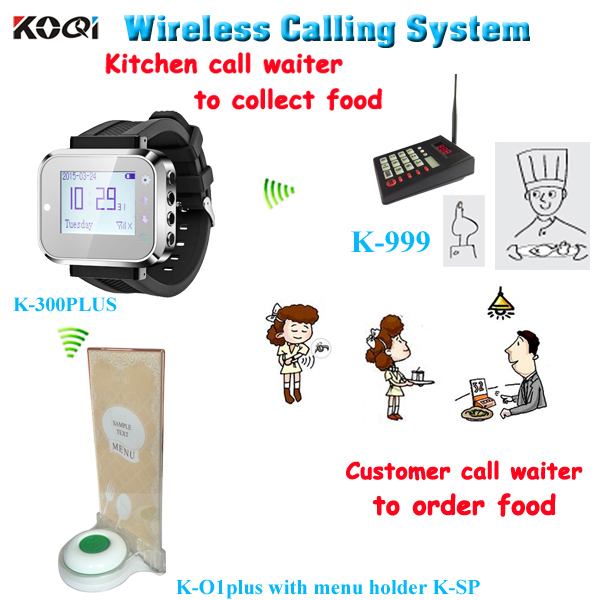

When customer need order food press the  button on the table. The table No. will show on the screen of K-300PLUS(the watch  display receiver) .Then waiter will know who's calling. Then he go to  this table and write down  what’s they need. Waiter will take order to kitchen .When order is ready;  kitchen(chef) will put  number from K-999 device .Then order No. will show on the screen of K-300PLUS. Then waiter will know which’s  table’s food is ready and go to pick up the food and take it to guest.

Specification of Transmitter K-999

1. With high strength ABS  material cover
2. Using digital code  technology and the function is steady and reliable
3. It can call 999  persons
4. With power on/off  function
5. With Clear and Next  function
6. Can work with K-236, K-300,  K-302, K-402NR, K-2000, K-800, K-4-C, K-4-D, K-10, Y-650, K-11  receiver

Technical parameters:

Signal Range: >200m in  open area
Working voltage:  DC12V
Working current:  <10mA
Working Frequency:  433.92mhz
Dimension:160*118*60mm

Specification of watch receiver  K-300PLUS:

1. Can work with 500pcs  1-key and multi-key transmitter in max
2. Can show 3 group call number in one  time
3.Show  4-digit number from 0001-9999 and first letter can be A-Z
4.Can indicate different  service type via words or letter.(call;bill;drink; dessert ; help etc and  A-Z)
5. Can record when call come  in and Can count the call times of each number
6.Can store 50 calls and track the history calls up and  down
7.Shows current  time when stand-by
8.3 reminder  ways:sound promt and vibration or both
9.Battery is rechargeable
10.Dimension:50*41*16mm
11.two display mode:live view and queue view
“live view” means, when No.1 No.2 No.3  call in turn, screen is show 0003 0002 0001. Newest call number show on the top  of screen.
“queue view” means, when  No.1 No.2 No.3 call in turn, screen is show 0001 0002 0003. Oldest call number  show on the top of screen.

Specification of call bell K-O1plus

1. 100%  Water-proof

2. Work with our receiver to combined the wireless calling system

3. Can be installed on each table, when the customer need help only press the button, the calling no will be shown on the screen, so everyone can easy to know who is calling.

4. 1-key: Call

5. Material: PC

6. Color: 5color

Technical Parameter:

Working voltage: DC12V

Working current: ≤10mA

Use Frequency:  433.92MHZ

Transmitted Power: ≤10mW

Transmitted Distance>200m in open area

Dimension : 60*60*22mm

Any language any LOGO acceptable

Specifications  of Menu Holder K-SP

Material:  acrylic(PMMA)

Base  size:  23*97*80mm

Stand  size:  185*90*4mm

Color: Color: hoder is transparent;  base:purple;black;transparent

For the buttons: K-X,M,AB,D,O,H,P series
help setup the call button
Can hold  menu card or advertisiment
can insert and fixed the button to the hole of  base,can't be stole easy.
