Two Way Radio KQ-888
  • Two Way Radio KQ-888
Loading...
Two Way Radio KQ-888
  • 简介 : UHF 400-470MHz Two Way Radio KQ-888
  • Specification model : KQ-888
  • size : 97.36*57.2*29.3mm
  • manufacturer : KOQI

  • product introduction
  • message

UHF 400-470MHz Two Way  Radio KQ-888

Quanzhou Koqi Electronic Co., Ltd is specialized in wide range of  communication equipments, such as Handheld Two Way Radio, Walkie Talkie, Vehicle  Radio, Marine Radios, Repeater, PABX, PBX System, IP PBX and wireless network  products. Some models are with CE,RoHS & FCC approval. Our main markets are  South America, Europe, North America, Asia and the Middle  East. Our products have won a good reputation in those markets.  Also we can provide OEM and ODM service if  necessary.

Specification

1. Frequency Range:400-470MHz.

2. Output power:  5W

3. Channel:  16

4. Busy Channel  Lockout

5. VOX  function

6.  CTCSS/DCS

7. Time-out  Timer

8. Low battery  warning

9. Battery Save

10. Flashlight  function

11. Noise reduction  circuit

12. 12.5K, 25K  available

13. P.C  programming

14. Talk Range:3- 10km

15. Dimension:  97.36*57.2*29.3mm(exclude antenna)

Parameter of Two Way Radio and  Walkie Talkie KQ-12

General

Frequency  coverage

UHF  400-470MHz.

Channel  Capacity

16

Channel  Spacing

12.5/25KHz

Operated  Voltage

3.7v

Battery Capacity

1500Mah Li-ion

Battery Life(5-5-90 duty cycle)

About 10 hours

Working Way

Simplex in same channel  Simplex in different channel

Frequency  Stability

+-2.5ppm

Operated  Temperature

-20°C to  +60°C

Antenna  Impedance

50Ω

Dimensions

97.36mm×57.2mm×29.3mm

Transmitter

RF output  power

5W

Modulation

F3E

Spurious  Emission

<-65dBm

FM  Noise

≤-45dB(W)  ≤-42dB(N)

Audio  Distortion

≤5%

Transmitting  Current

≤1.2A

Receiver

Sensitivity(12Db  SINAD)

≤0.20μV

Sensitivity

60dB/55dB

Intermodulation

≥65dB

Adjacent Channel  Selectivity

≥60dB

Spurious  Response

≥60dB

FM Noise

45Db(W)/42Db(N)

Audio power  Output

1000mW

Audio  Distortion

≤5%

Each set packaging  Including:

1 pc  Radio

1 pc  charge

1 pc  battery

1 pc  antenna

1 pc belt  clip

1 pc user's  manual

Optional  accessories:

Speaker  Microphone

Earphone

Radio  case

Delivery time: sample or small order  within 3 days and bulk order within one week.

Payment: T/T, Western union, Paypal, Escrow

Warranty: 1 year

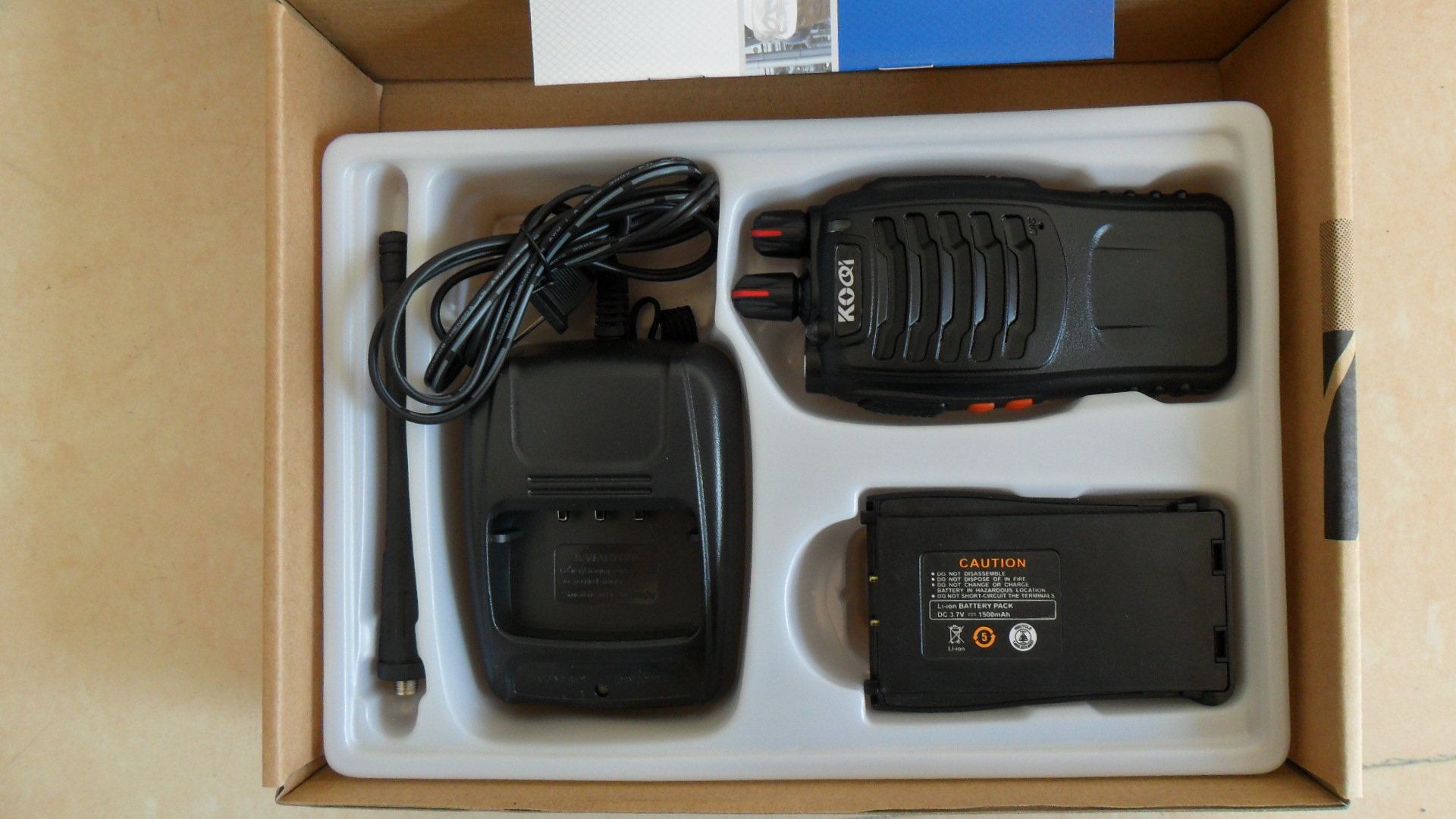

Detailed pricture of China Two Way Radio and Walkie Talkie KQ-888

If you are interested in Two Way Radio and Walkie Talkie KQ-888,  please contact me anytime, I will reply to you in 24 hours. Thank  you.

China Two Way Radio and Walkie Talkie for better  life
